WJ200 Series 5Ply Corrugated Cardboard Production Line

WJ200 Series 5Ply Corrugated Cardboard Production Line

  • WJ200 Series 5Ply Corrugated Cardboard Production Line
  • WJ200 Series 5Ply Corrugated Cardboard Production Line
  • WJ200 Series 5Ply Corrugated Cardboard Production Line
  • WJ200 Series 5Ply Corrugated Cardboard Production Line
  • WJ200 Series 5Ply Corrugated Cardboard Production Line
  • WJ200 Series 5Ply Corrugated Cardboard Production Line
WJ200 Series 5Ply Corrugated Cardboard Production Line
Product Details:
Place of Origin: China
Brand Name: West River
Certification: ISO, CE
Model Number: WJ200 series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 0.01
Packaging Details: 12 containers
Delivery Time: 100days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/per year
Contact Now
Detailed Product Description
Width: 1200-2500mm Speed: 200m/min
Type: 3ply & 5ply Name: Corrugated Machine
Raw Material: Craft Paper Material (for Corrugating)

Product Description
1. Model: WJ200

2. Max. Speed: 200m/Min

3. Standard: GB

4. Certification: ISO9001, CE



Model
WJ200 Series
Design Speed
200m/min
Width
1200-2500mm (option)
Production Volume
~260,000 - 550,000 sq.m/day
Flute type
A, B, C, E, F, G flutes (height customized)
Size(L*W*H)
80m*9m*5.4m
Steam consumption
3000kg/h(1.1-1.2Mpa)
Power supply
~300KW ,~380Vac, 50HZ, 3 phases 4 wires
Pre-heater
Cylinder(Rotary/Fix) or Arc plate(new) or Cylinder Block(temperature sensor)
Correction device
Auto tension control device
Double Facer
Air bag, Auto steam system
Steam system
With
Air Compressor
With
Display Board
With
Auto-centralized
With
Auto-Splicer
With
PMS SYSTEM
Option
Intelligent temperature system
Option
Surface Color
Option
ERP System
Option
Roll Paper and Cardboard logistic system
Option
Changing Orders without stop
Option
Deliver day
120 days
Installation
By supplier
Warranty
1 year



West River brings different technologies for your options, for 200m/min single facer, you can choose between inner vacuum or outer vacuum single facer according to your situation, our mature and more than 40 years of long history technologies accumulation ensures our quality and wide different technology choice for our customers.









Product Show

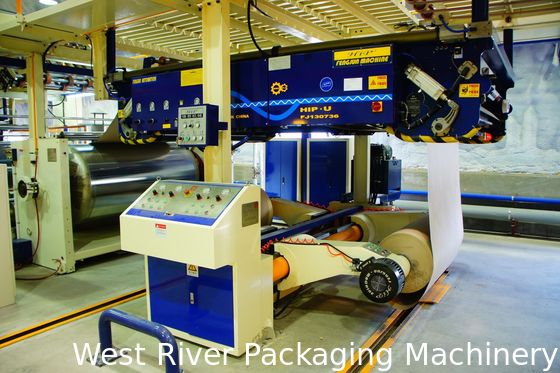

WJ200 Series 5Ply Corrugated Cardboard Production Line 0WJ200 Series 5Ply Corrugated Cardboard Production Line 1WJ200 Series 5Ply Corrugated Cardboard Production Line 2WJ200 Series 5Ply Corrugated Cardboard Production Line 3

WJ200 Series 5Ply Corrugated Cardboard Production Line 4WJ200 Series 5Ply Corrugated Cardboard Production Line 5









Layout Design

Our profession engineers are able to design the complete factory layout according to your requirements.

WJ200 Series 5Ply Corrugated Cardboard Production Line 6





Finish products

Our equipment help you to produce high-quality cardboard and carton.

WJ200 Series 5Ply Corrugated Cardboard Production Line 7







What do you know about our machines?

WJ200 Series 5Ply Corrugated Cardboard Production Line 8



In the past couple of decades we have always insisted on high quality, our products are exported to more than 30 countries.



WJ200 Series 5Ply Corrugated Cardboard Production Line 9





WestRiver Packaging Machinery was founded in 1954. The first semi-automatic single facer of China was born at our factory in 1978. It was the prelude of corrugated packaging industry.







Our engineers are available to service overseas



We attend to the trade fairs all over the world



WJ200 Series 5Ply Corrugated Cardboard Production Line 10



You are always welcome to visit our factory



WJ200 Series 5Ply Corrugated Cardboard Production Line 11



We adhere to the "quality first, reputation first" business purposes, and continuously forgeahead.







FAQs



1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer.

2Q: Where are your factory located in ?
A: Our factory located in Zhaoqing city, Guangdong, China

3Q: Where is the nearest airport of factory ?
A: The nearest airport is Guangzhou Baiyun International airport. It take 1.5 hours from Guangzhou to Zhaoqing factory by car. We are glad to pick you up at the airport.

4Q: What is your business process?
A: Talk about requirements, confirm details, sign a sales contract, pay for deposit, arrange production, test machines, buyer pay for the balance payment, arrange shipment.

5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution
We have professional technicists to supervising to production
Our professional department to examine about every production process

6Q:What can you do if the machine broken?
A: The warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we can negotiate to the problems, and we supply the technical support for the whole life of the equipment.
