Product Details:
Place of Origin: guangdong
Brand Name: west river
Certification: CE, ISO9001-2008
Model Number: DWJ
Payment & Shipping Terms:
Price: 0.01
Packaging Details: Container
Delivery Time: 50 days
Payment Terms: 361
Supply Ability: 50 units
Minimum Order Quantity: 1 unit
Contact Now
Detailed Product Description
Name: Corrugated Machine Raw Material: Craft Paper Material (for Corrugating)
High Light:

corrugated cardboard production line

,

carton machine

,

cardboard machine

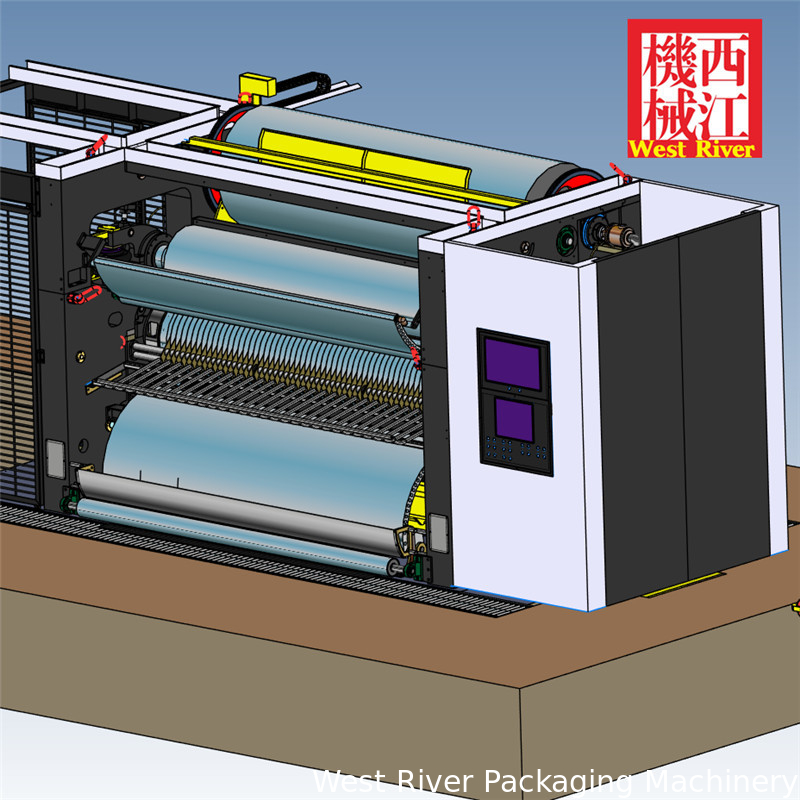

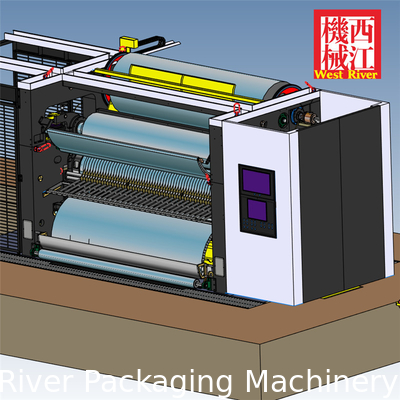

SINGLE FACER(outer vacuum type)

Equipped with outer vacuum structure. There is a pair of corrugated rollers to make a paper sheet into one corrugated paper, then, agglutinated with another paper sheet into one single Face cardboard. Different flutes needs different pairs of corrugating rollers to make.

Flute Type: UV, flutes A,B, C ,BC,D,E , two of them can be selected by Clients.

Flute, H= mm;

  • Diameter of the corrugated Roller is Φ260mm，made of material 48CrMo alloy metal，heat treatment with high frequency，precise grinding, surface rigidity is over HRC55-60.
  • High temperature grease for Lubricating.
  • The surface of Glue roller is plated with chrome, scored 24 fine thread(mesh)/inch，，make glue feeding well-proportioned。
  • Main drive is driven by electro-magnetic speed adjustment motor and Chain Drive..
  • Economy packing machine- Fixed type vacuum single 0The thickness of glue can be tiny adjusted by electro-motion, the clearance is digital displayed.
  • The gluing width is adjusted by Electro-motion.
  • Pressure of steam: 1.1-1.2Mpa.
  • The high pressure Fan is equipped with Silencer.
  • The glue feeding device can be moved by Electro-motion.
