Product Details:
Place of Origin: Guangdong
Brand Name: West RIver
Certification: ISO9001:2000 CE
Model Number: WJ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 0.01
Packaging Details: Container
Delivery Time: 120 days
Payment Terms: TT, L/C
Supply Ability: 25 sets
Minimum Order Quantity: 1 set
Contact Now
Detailed Product Description
Width: 1200-2800mm Speed: 100-350m/min
Control System: CAN Control Servo System Name: Corrugated Machine
Raw Material: Craft Paper Material (for Corrugating)

AUTOMATIC PLC CONTROLLED PAPERBOARD CONVEYER, PLC STACKER



Swing Conveyor Stacker | PLC control | Auto Counting output | Connect with Cardbaord Logistics System Auto Strapping 0

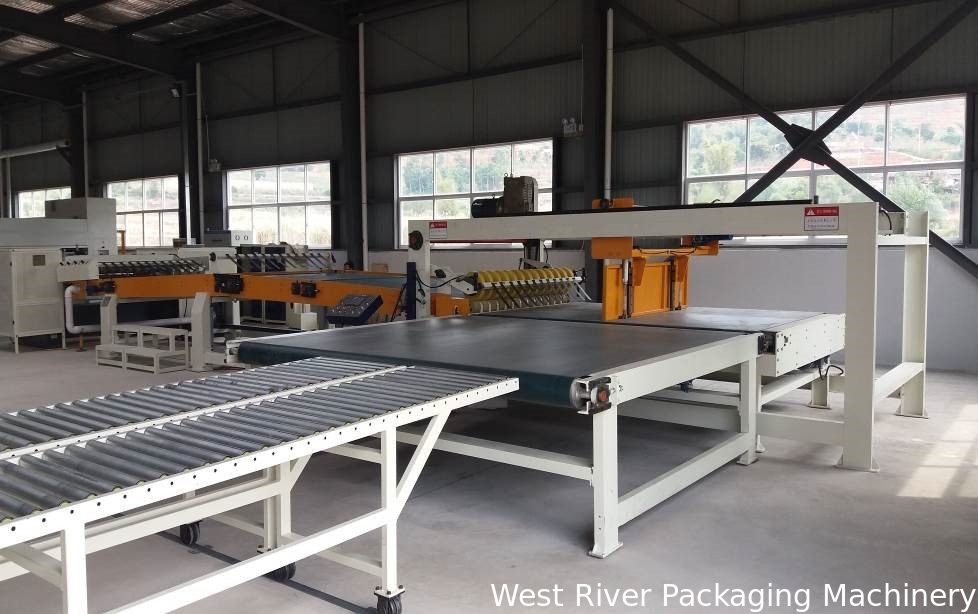

The down stacker forms an integral part of the corrugator and is installed after the cutoff knife. Its function is to receive the individual board, cut from the cutoff knife and transport them to the stacker bay lift to stack up. The boards from the cutoff knife are sucked down via vacuum and brushes section and shingled onto the conveyor belts. Once the number of sheets in working order is reached, the belts will accelerate to create a gap between the two consecutive stacks. The differential speeds of the conveyor belts allows sheets to be transported into the stacker lift bay, stacked up and discharged. The stacker cycle-time is precisely calculated that the stacker lift bay is in time to receive the sheets of the next stack.



Swing Conveyor Stacker | PLC control | Auto Counting output | Connect with Cardbaord Logistics System Auto Strapping 1

Double Layer Swing Conveyer Stacker



Swing Conveyor Stacker | PLC control | Auto Counting output | Connect with Cardbaord Logistics System Auto Strapping 2

Single Layer Conveyer Stacker



Swing Conveyor Stacker | PLC control | Auto Counting output | Connect with Cardbaord Logistics System Auto Strapping 3

PLC Servo Motor control



Swing Conveyor Stacker | PLC control | Auto Counting output | Connect with Cardbaord Logistics System Auto Strapping 4

Valid width: 1200mm-2500mm



Design speed: 100M/min-250M/min



Corrugation Type: 3Py, 5Ply, 7Ply



Flute type: A, C, B, E, F, G Flute



Swing Conveyor Stacker | PLC control | Auto Counting output | Connect with Cardbaord Logistics System Auto Strapping 5

Connection With Cardboard Logistics and Package sytem(customized design)

Up to 300m/min speed design solution



Swing Conveyor Stacker | PLC control | Auto Counting output | Connect with Cardbaord Logistics System Auto Strapping 6
