Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System

Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System

  • Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System
  • Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System
  • Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System
  • Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System
  • Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System
Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System
Product Details:
Place of Origin: Guangdong
Brand Name: West RIver
Certification: ISO9001:2000 CE
Model Number: WJ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 0.01
Packaging Details: Container
Delivery Time: 120 days
Payment Terms: TT, L/C
Supply Ability: 25 sets
Minimum Order Quantity: 1 set
Contact Now
Detailed Product Description
Width: 1200-2800mm Speed: 100-350m/min
Control System: CAN Control Servo System Name: Corrugated Machine
Raw Material: Craft Paper Material (for Corrugating)
High Light:

Corrugated Singlefacer machinery

,

Corrugated Cardboard machinery

,

Carton Machinery

AUTOMATIC PLC CONTROLLED PAPERBOARD CONVEYER, PLC STACKER



Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 0



The down stacker forms an integral part of the corrugator and is installed after the cutoff knife. Its function is to receive the individual board, cut from the cutoff knife and transport them to the stacker bay lift to stack up. The boards from the cutoff knife are sucked down via vacuum and brushes section and shingled onto the conveyor belts. Once the number of sheets in working order is reached, the belts will accelerate to create a gap between the two consecutive stacks. The differential speeds of the conveyor belts allows sheets to be transported into the stacker lift bay, stacked up and discharged. The stacker cycle-time is precisely calculated that the stacker lift bay is in time to receive the sheets of the next stack.



Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 1

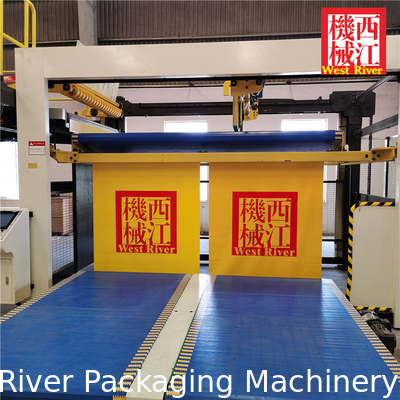

Double Layer Conveyer Stacker



Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 2

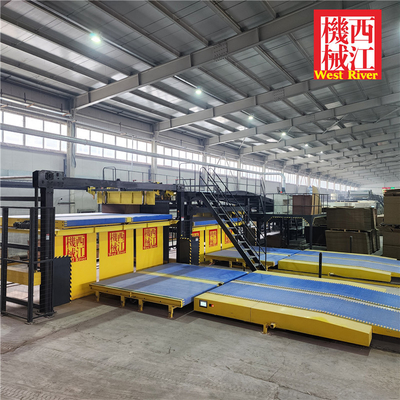

Single Layer Conveyer Stacker



Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 3

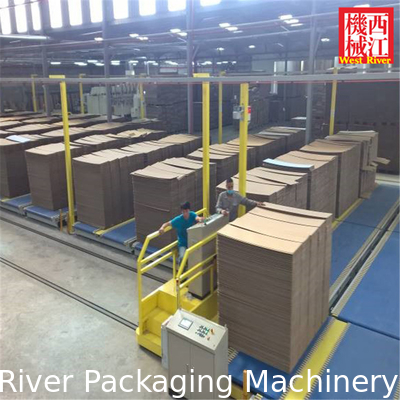

PLC Servo Motor control



Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 4

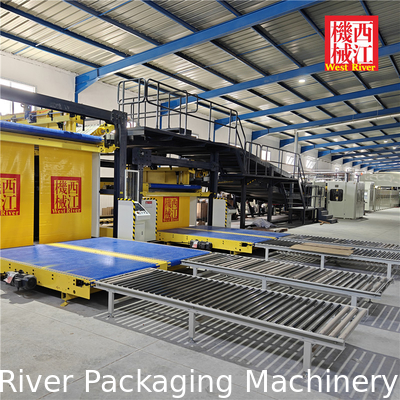

Valid width: 1200mm-2800mm



Design speed: 100M/min-350M/min



Corrugation Type: 3Py, 5Ply, 7Ply



Flute type: A, C, B, E, F, G Flute



Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 5

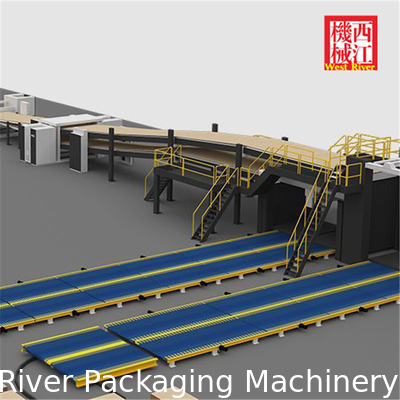

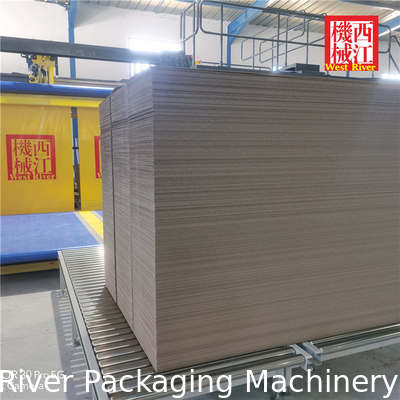

Connection With Cardboard Logistics sytem(customized design)







Guangdong Zhaoqing WEST RIVER Packaging Machinery Co., Ltd.



As the first professional company engaged in corrugated cardboard and carton machinery in China, it was founded in 1954. Since 1978, it has manufactured the first semi-auto corrugated machinery in China. And from 1999, we began to cooperate with famous Germany company to produce High-speed Fully automatic corrugated cardboard production line for Asian Market. Its vision is to create customized solutions for customers around the world through the continuous efforts of our team and to achieve the sustainable development of Century Old Company.

We can provide comprehensive factory planning and design solutions, equipment manufacturing, installation and debugging, as well as technical personnel training for not matter of NEW TURN-KEY Project Design or Old Factory Upgradation Solution. We can achieve your long-term and sustainable development through our professional technology! In order to provide you with more accurate equipment solution and quotation, please send us your specific requirements of the equipment or investment requirements, we will provide you full corrugation industrial design solution for you and all the in-depth technique consultation.
Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 6
