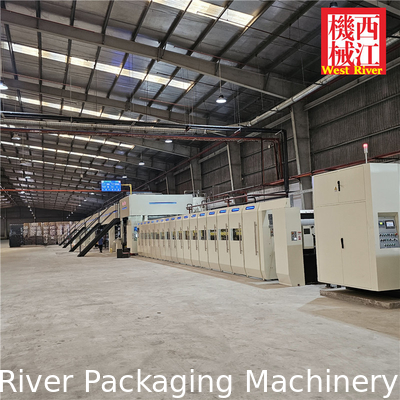

European CE Standard Customized Industrial Corrugated Cardbaord and Carton Plant Design
Features:
1. Export to European CE standard high-speed multi-functional Auto 5Ply corrugated cardboard production line, to meet European CE production standards.
2. 15/5 mins changing flutes single facer, multi-corrugating flutes combination.
3. WEST RIVER newly beckhoff intelligent control system
4. Intelligent constant tension control system to meet various types of paper applications around the world.
5. Intelligent temperature control system meets the requirements of stable operation of all kinds of 3,5.7ply corrugated cardboard, and ensures the edge-crush strength and ring-crush strength meet the export standards.
6. Optical fiber + Ring Network connection, realizing the accurate synchronization of production line from wet end and dry end to data docking.
Advantages:
This system utilizes fiber optic data communication in both wet and dry end sections, as well as in the ring network, effectively mitigating interference in extended production lines typically encountered with traditional PLC analog communication, even in arid environments like deserts. Additionally, it features a regular maintenance function that prompts operators to perform equipment maintenance on a timely basis. As big data accumulates, the system can undergo upgrades akin to upgrading from Windows 10 to Windows 11.
Furthermore, it is equipped with a remote maintenance system, allowing our engineers in China to monitor the operation of each device in real-time through this control system.
The production line adopts our company's innovative European design and aesthetics, along with adhering to European CE mechanical and electrical control safety standards. The CE-compliant electrical control cabinet and aviation plug are swiftly installed and debugged at the customer's site.

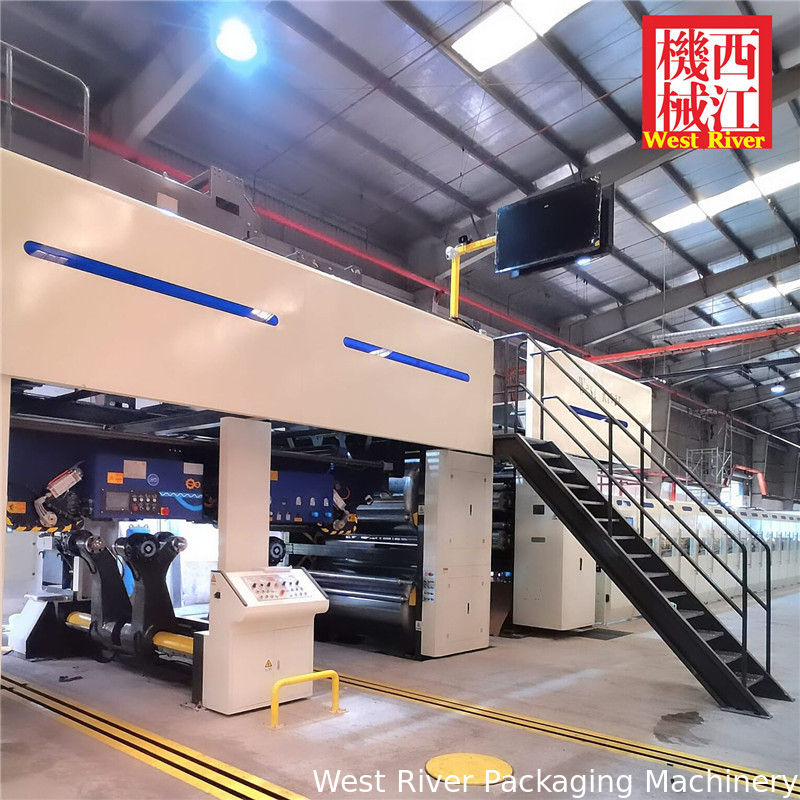

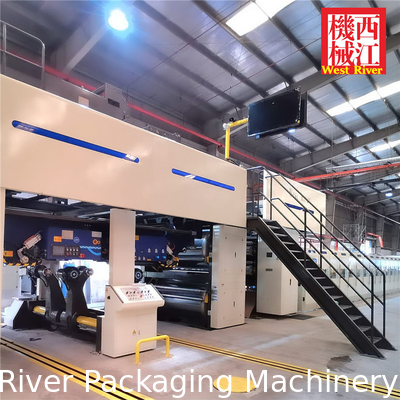

To meet the current market demand for high daily order volumes, exceeding 600 orders, we have equipped two of our most advanced Single Facer machines with a 5-minute flute change capability. In contrast to the standard cassette-type Single Facer on the market, which requires at least 15 minutes to remove and replace the corrugated roller, followed by another 30 minutes after preheat and machine setup, our fast-change Single Facer achieves a genuine 5-minute corrugated roller replacement through a fully hydraulic control integrated dual-station design. Prior to replacement, the alternate corrugated roller can be preheated, enabling a swift 5-minute completion of the replacement operation via hydraulic control, significantly enhancing production efficiency for multiple order states.
Moreover, the corrugated line incorporates a dual slitter scorer and a multi-functional shearer machine, working in tandem with the system and the WEST RIVER BECKHOFF control system to facilitate rapid order replacement at the Dry End, enabling efficient and seamless order replacement of 600-900 orders per day. The newly developed cardboard unloading system maximizes stack output, ensuring efficient cardboard unloading and production. It also enables order label printing, thereby achieving fully digital order factory management.
Guangdong Zhaoqing WEST RIVER Packaging Machinery Co., Ltd.
As the first professional company engaged in corrugated cardboard and carton machinery in China, it was founded in 1954. Since 1978, it has manufactured the first semi-auto corrugated machinery in China. And from 1999, we began to cooperate with famous Germany company to produce High-speed Fully automatic corrugated cardboard production line for Asian Market. Its vision is to create customized solutions for customers around the world through the continuous efforts of our team and to achieve the sustainable development of Century Old Company.
It can provide a full range of products of corrugated board production line manufacturing. From 2Ply single face, 3Ply single wall, 5Ply double wall to 7Ply to 9Ply heavy package Automatic Corrugated Cardboard Production Line, Fully Automatic Corrugated Cardboard Production Line, And Newest AI control technology, colorful flexo printing, pre-printed cardboard production line development, with more than 60 years of technique accumulation, the company already has a supermarket-scale technique development for the field of corrugated board packaging machinery.
Solutions: Customized Industrial Corrugated Cardbaord and Carton Plant
Valid width: 1200mm-3300mm
Design speed: 100M/min-350M/min
Corrugation Type: 2Ply, 3Py, 5Ply, 7Ply
Flute type: A, C, B, E, F, G Flute
Printing: Water Base Flexo Printing, Pre-printing
Cotrol System: WEST RIVER newly beckhoff control system
