Auto Paper Splicer | High Speed Corrugated Paper Splicing Machine, 150-350m/min

Product Details:

Place of Origin:	Guangdong
Brand Name:	West River
Certification:	ISO9001:2000, CE
Model Number:	CE Auto Splicer

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10,000
Packaging Details:	Container
Delivery Time:	60 days
Payment Terms:	TT, L/C
Supply Ability:	25 sets
Minimum Order Quantity:	1 set

Contact Now

Detailed Product Description

Name:	Corrugated Machine	Speed:	150-400m/min
Width:	1400-3300	Tension:	Automatic Control
Control:	PMS Beckhoff System Control	Raw Material:	Craft Paper Material (for Corrugating)

Automatic Splicer for Paper Splicing

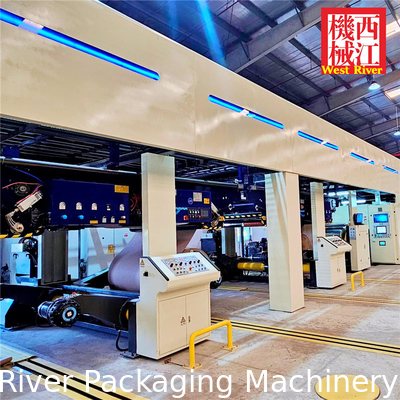

Auto Paper Splicer | High Speed Corrugated Paper Splicing Machine, 150-350m/min 0

Speed: 150m/min - 400m/min

Zero Tail Design

Auto Tension Control, Laser detection

PMS System Automatic Control

High Precision...

Features:

It can reduce the loss of the base paper. Using the automatic paper feeder can reduce the loss of each paper receiving from about 10m when the original manual paper receiving to less than 10cm at the end of the paper. This is because the deviation and no tension loss can be avoided when the manual paper is put through, which can make each roll of paper be used to the paper core, and a large number of waste rolls no longer exist. The case of paper break has been effectively reduced. The tension control system inside the machine can control the tension by controlling the Mill Roll Stand brakes. The air control system will monitor the tension on the base paper to protect the base paper from breaking in operation, so as to reduce the number of stops and ensure the quality of the paperboard.

It can improve the production efficiency. The automatic paper feeder can splice the paper at the maximum running speed of the tile line. The manual paper feeder must be stopped or reduced to a very low speed. For example, if the order of the wet end is short, the automatic paper feeder can generally increase the speed by 35%, reducing the dependence on the skilled workers. The operator only needs to complete the simple work of preparing the paper feeder and pressing the drive key, eliminating the complexity Miscellaneous manual actions such as "speed reduction, paper threading, lamination, brake control, etc." will not neglect the alignment of cardboard and product quality control due to rush. The liberated personnel will have more time to control and observe other equipment to better control cardboard quality.

It can improve the quality of the products. One of the main reasons for the bending of the paperboard is the change of the tension of the base paper. After using the automatic paper feeder, the quality of paperboard has been improved naturally because there is almost no need to reduce the speed and stop when the tile line is running.

tension control system PLC computer control, closed-loop monitoring system, constantly adjust the brake of the Mill roll stand to adapt to the inertia compensation of the paper roll changed by the size of the paper roll, so as to achieve perfect tension control.

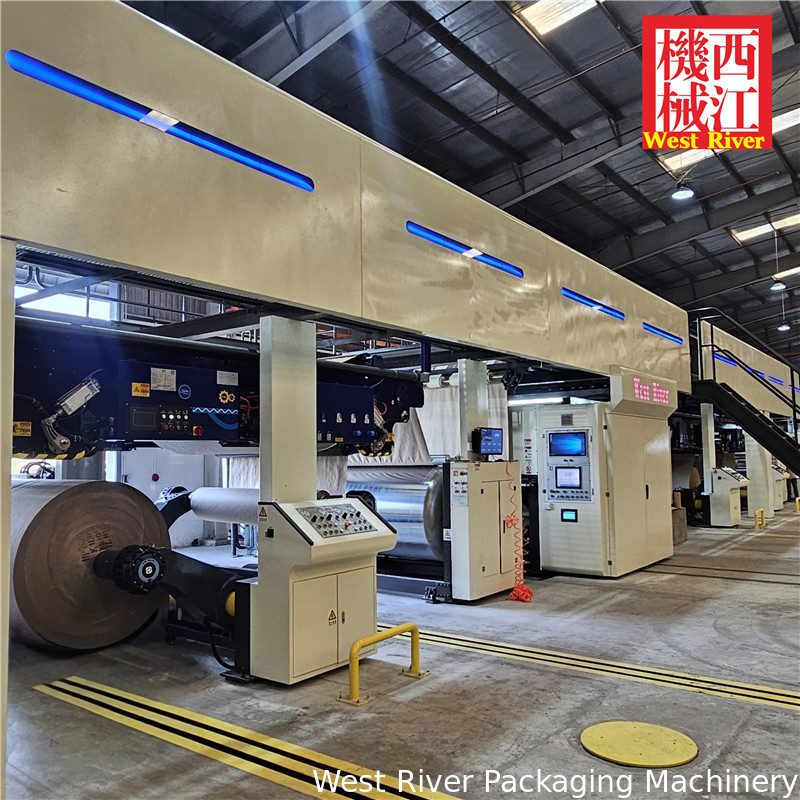

Auto Paper Splicer | High Speed Corrugated Paper Splicing Machine, 150-350m/min 1

Guangdong Zhaoqing WEST RIVER Packaging Machinery Co., Ltd.

West River company has been committed to the practical technology research and development and manufacturing of corrugated cardboard equipment and carton technology, and designed for customers in different regions of the world due to the different quality of paper materials. To meet customers to achieve high-quality carton packaging products production and manufacturing. The implementation of intelligent and energy-saving technology further reduces the production cost of customers, and improves and ensures the benefits of customers' investment.

As the first professional company engaged in corrugated cardboard and carton machinery in China, it was founded in 1954. Since 1978, it has manufactured the first semi-auto corrugated machinery in China. And from 1999, we began to cooperate with famous Germany company to produce High-speed Fully automatic corrugated cardboard production line for Asian Market. Its vision is to create customized solutions for customers around the world through the continuous efforts of our team and to achieve the sustainable development of Century Old Company.

It can provide a full range of products of corrugated board production line manufacturing. From 2Ply single face, 3Ply single wall, 5Ply double wall to 7Ply to 9Ply heavy package Automatic Corrugated Cardboard Production Line, Fully Automatic Corrugated Cardboard Production Line, And Newest AI control technology, colorful flexo printing, pre-printed cardboard production line development, with more than 60 years of technique accumulation, the company already has a supermarket-scale technique development for the field of corrugated board packaging machinery.
