PLC CONTROL AUTOMATIC INNER VACUUM SINLGE FACER(Cassette type )
(Positive/Outer Vacuum Option)
Product Description
Equipped by vacuum structure. There is a pair of corrugated rollers to make a paper sheet into one corrugated paper, then, agglutinated with another paper sheet into one single Face cardboard.
Flute Type: UV, flutes

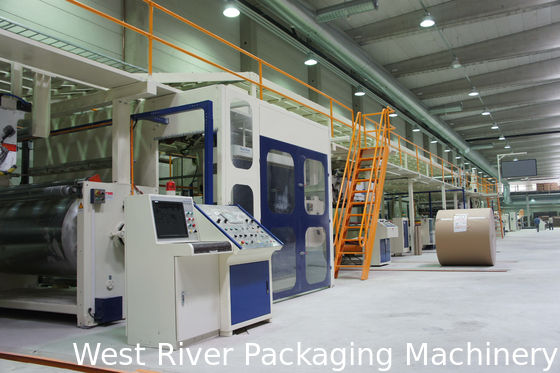

Cassette Type Inner VacuumSIngle Facer
Valid width: 1200mm-2500mm
Design speed: 100M/min-300M/min
Corrugation Type: 2Ply, 3Py, 5Ply, 7Ply Production Line
Flute type: A, C, B, E, F, G Flute
Cotrol System: Siemens Profibus
Change Flutes: 50 Min
Diameter of the corrugated Roller is Φ320mm(Φ360mm,Φ430mm),made of material 48CrMo alloy metal, heat treatment with high frequency,precise grinding, surface rigidity is over HRC55-60, outer surface of Corrugated rollers is plated with hard chrome
Features:
- High temperature grease for Lubricating.
- The surface of Glue roller is plated with chrome, scored 32 fine thread (mesh)/inch, make glue feeding well-proportioned.
- Pressure of steam: 1.2-1.4Mpa.
- The high pressure Fan is equipped with Silencer.
- The glue feeding device can be moved by electro-motion.
- The thickness of glue is digital displayed, is adjusted automatically according speed or by electro-motion, the thickness value might be set by operator at any time and remembered in the EMS
- Memory of PLC.
- Gluing width is adjusted by Electro-motion.
- Main Drive is controlled by frequency transducer(inverter, Siemens), save electric power, gentle start of machine(less stroke)
- With infrared transfer for detecting paper break, protect automatically when paper is broken, the press roll and the glue trough will be pushed back.
- SIEMENSTransducer made in Germany.
- Leading Motor Made in China.
- Leading Bearing adopt NSK made in Japan.
- 50min Change flutes....
Guangdong Zhaoqing WEST RIVER Packaging Machinery Co., Ltd.
Paperboard is the most widely used environmentally friendly recyclable packaging material in the currently world. It is made of recyclable Kraft Paper and Starch, processed into cardboards through corrugator machines. It has the advantages of easy forming, good shock resistance, high compressive strength, light weight and low cost. Widely used in daily necessities, fruits and vegetables, candy and snacks, mechanical parts and other packaging, and through waterproof technology to achieve high-humidity products packaging such as seafood.
As the first professional company engaged in corrugated cardboard and carton machinery in China, it was founded in 1954. Since 1978, it has manufactured the first semi-auto corrugated machinery in China. And from 1999, we began to cooperate with famous Germany company to produce High-speed Fully automatic corrugated cardboard production line for Asian Market. Its vision is to create customized solutions for customers around the world through the continuous efforts of our team and to achieve the sustainable development of Century Old Company.
It can provide a full range of products of corrugated board production line manufacturing. From 2Ply single face, 3Ply single wall, 5Ply double wall to 7Ply to 9Ply heavy package Automatic Corrugated Cardboard Production Line, Fully Automatic Corrugated Cardboard Production Line, And Newest AI control technology, colorful flexo printing, pre-printed cardboard production line development, with more than 60 years of technique accumulation, the company already has a supermarket-scale technique development for the field of corrugated board packaging machinery.
