Innovate Packaging Technology, Create Satisfaction Value For Customers
Place of Origin: | guangdong |
Brand Name: | West River |
Certification: | CE, ISO9001-2008 |
Model Number: | DKA |
Minimum Order Quantity: | 1 |
---|---|
Price: | 30,000 |
Packaging Details: | Container |
Delivery Time: | 60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 70 units |
Minimum Order Quantity: | 1 unit |
Name: | Corrugated Machine Full Digital Control | Speed: | 200-400m/min |
---|---|---|---|
Flutes: | A B C E F G N | Width: | 1600-3300 |
Corrugated Roller: | Hard Chrome, Carbide Tungsten | Structure: | Cassette Type Inner Vacuum |
Change Flutes: | 15mins | Driving: | Full Hydraulic System |
Raw Material: | Craft Paper Material (for Corrugating) |

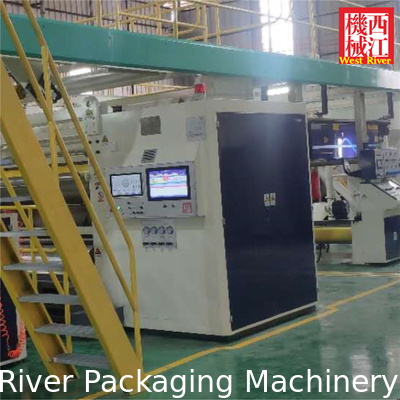

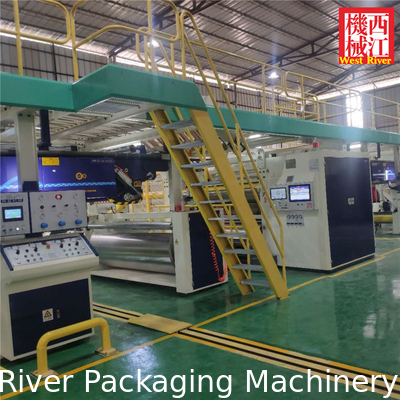

DKA VERTICAL TYPE SINLGE FACER
Inner Vacuum Structure
Vertical Cassette Type Single Facer
15 mins Change Flutes, Full Hydraulic Driving System, Full digital control of glue
Valid width: 1600mm-3300mm
Design speed: 200M/min-400M/min
Corrugation Type: 3Py, 5Ply, 7Ply Production Line
Flute type: A, C, B, E, F, G Flute
Cotrol System: DCS Intelligent Control System
Features:
1). Design speed: 200-350m / min
2). The diameter of the corrugated roller is Φ 360mm, Φ 430mm, Φ 460mm, the diameter of the pressure roller is Φ 500mm, the diameter of the glue roller is 315 mm, and the diameter of the even roller is 180mm.
3). Corrugated roller eccentric fine adjustment function.

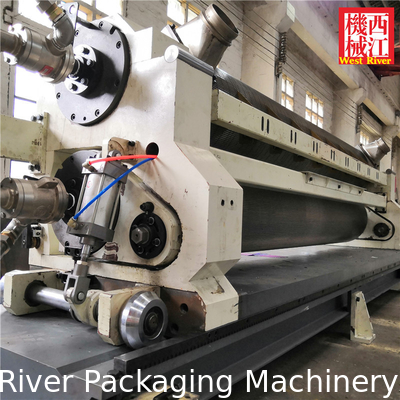

4). Cassette type rollers change, Italian hydraulic motor drive, quick plug-in steam structure, 15 minutes to complete the corrugated roll change.
5). The gap between the pressure roller and the corrugated roller is adjusted by the independent servo push rod at both ends, and the gap is automatically adjusted by changing the corrugated type.
Advantages:
(1). Intelligent full-automatic high-speed quick change facer.
(2). Adopt vertical high rigidity module structure, stable high speed and low noise.
(3). Inner vacuum corrugated roller structure, high quality corrugation forming, strong compression strength and high flatness, high compatibility with base paper, low GSM, high GSM, high quality paper, low quality paper can easily be coped with.
(4). The main motor uses high-power servo motor, with stable speed acceleration and deceleration, which effectively solves the resonance of the whole machine;
(5). Module design, cassette type single facer, 15 minutes change corrugated roller by electric.
(6). Modular design, cassette type electric quick change pressure roller.
(7). Modular gluing mechanism, servo control precise gluing, automatic glue unit separation, automatic cleaning of glue roller.
(8). Quick and automatically separation of steam pipes by electric, the risk of scald for operators is 0.

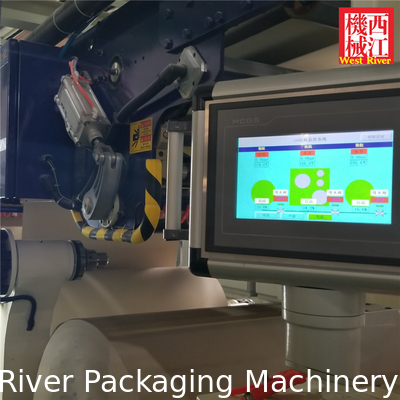

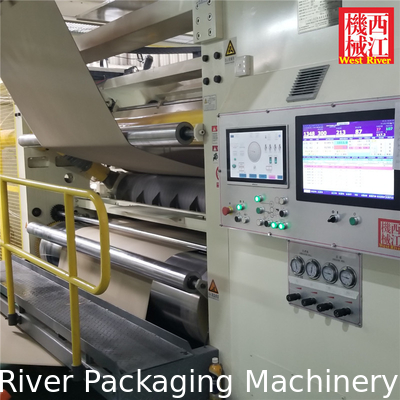

Fully Automatic Control
Intelligent Control Steam System
Automatic Steam Plug-in While Change Flutes

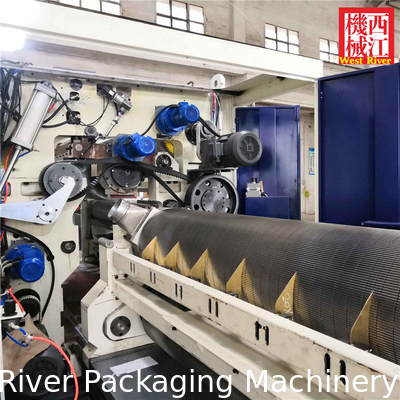

Multi Point Inner Vacuum Structure
Industrial 4.0 Design Solution
Active Paper Detection Technology

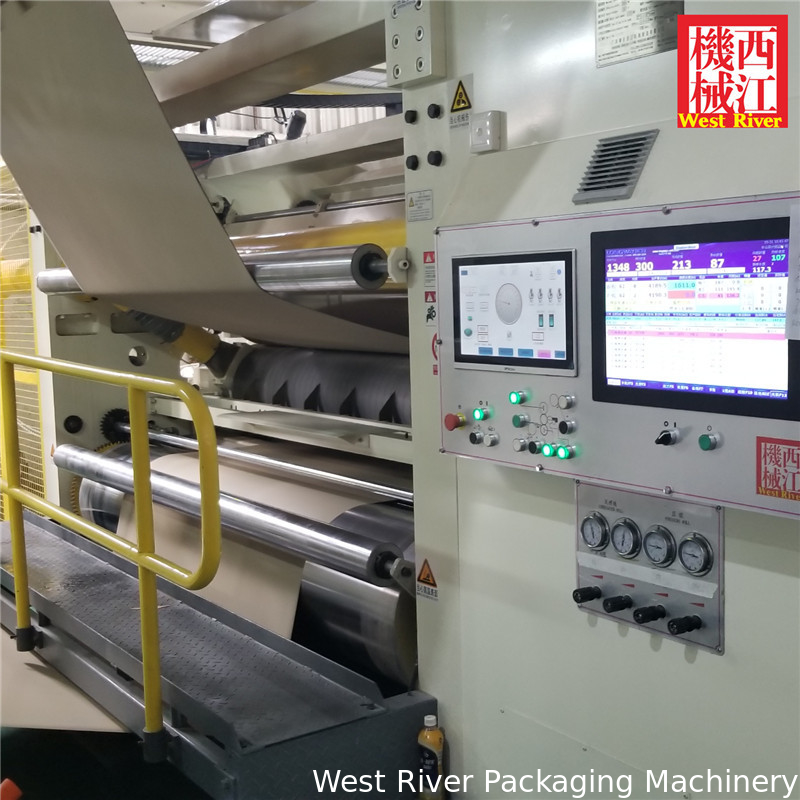

DCS Intelligent Electrical Control System...
