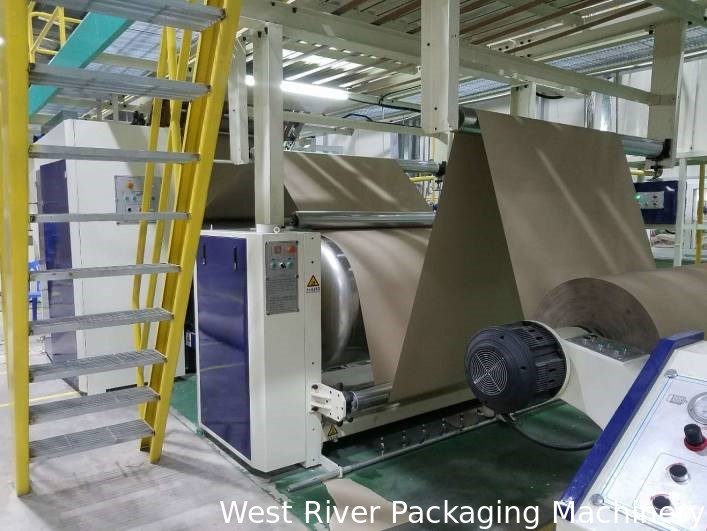

Corrugating Machine- Preheater/Pre-conditioner
Rotary Pre-heater,Double, Triplex, Four Layer preheater
Design for 2 Layer 3 Layer 4 Layer 5 Layer 9 Layer Corruagating machines
Speed: 100m/min -300m/min
PLC control, Auto Wrap Angle
- Diameter of the heating barrels are 600mm, 900mm,1100 mm;
- There are two guide rollers over the top of the pre-heater big barrel(with polishing surface), one is fastness, another rotate around the big barrel by electro-motion adjustment.
- The surface of the guide roller is grinded, then plated with hard chrome.
- The big heating barrel is more safe to endure pressure and higher heat efficiency.The big heating barrel is fixed while working.
- The pressure of steam is 1.1-1.2MPa.
- The wrap angle on the barrel could be adjusted in the range of 6 00-2800.
- Leading Moto Made in China.
- Leading Bearing adopt NSK made in Japan.
Guangdong Zhaoqing WEST RIVER Packaging Machinery Co., Ltd.
Paperboard is the most widely used environmentally friendly recyclable packaging material in the currently world. It is made of recyclable Kraft Paper and Starch, processed into cardboards through corrugator machines. It has the advantages of easy forming, good shock resistance, high compressive strength, light weight and low cost. Widely used in daily necessities, fruits and vegetables, candy and snacks, mechanical parts and other packaging, and through waterproof technology to achieve high-humidity products packaging such as seafood.
West River company has been committed to the practical technology research and development and manufacturing of corrugated cardboard equipment and carton technology, and designed for customers in different regions of the world due to the different quality of paper materials. To meet customers to achieve high-quality carton packaging products production and manufacturing. The implementation of intelligent and energy-saving technology further reduces the production cost of customers, and improves and ensures the benefits of customers' investment.
As the first professional company engaged in corrugated cardboard and carton machinery in China, it was founded in 1954. Since 1978, it has manufactured the first semi-auto corrugated machinery in China. And from 1999, we began to cooperate with famous Germany company to produce High-speed Fully automatic corrugated cardboard production line for Asian Market. Its vision is to create customized solutions for customers around the world through the continuous efforts of our team and to achieve the sustainable development of Century Old Company.
It can provide a full range of products of corrugated board production line manufacturing. From 2Ply single face, 3Ply single wall, 5Ply double wall to 7Ply to 9Ply heavy package Automatic Corrugated Cardboard Production Line, Fully Automatic Corrugated Cardboard Production Line, And Newest AI control technology, colorful flexo printing, pre-printed cardboard production line development, with more than 60 years of technique accumulation, the company already has a supermarket-scale technique development for the field of corrugated board packaging machinery.
Solutions: Customized Industrial Corrugated Cardbaord and Carton Plant
Valid width: 1200mm-2800mm
Design speed: 100M/min-350M/min
Corrugation Type: 2Ply, 3Py, 5Ply, 7Ply
Flute type: A, C, B, E, F, G Flute
Printing: Water Base Flexo Printing
Cotrol System: Siemens Profibus
