WEST RIVER OVERHEADCONVEYOR BRIDGE AND AUTO TENSION AND WEB GUIDER SYSTEM For Smart 5.0 Corrugated Machines Design

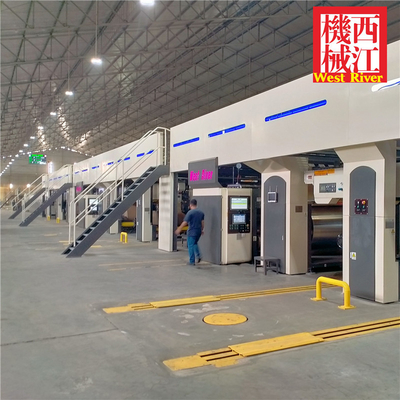

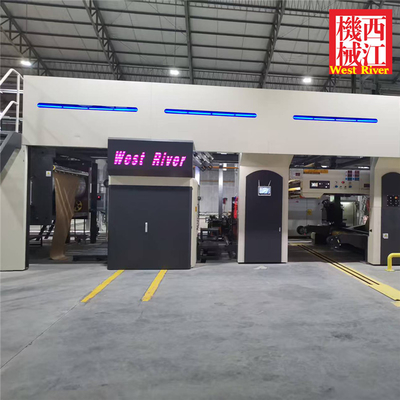

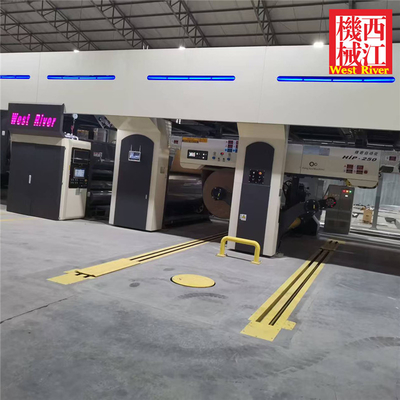

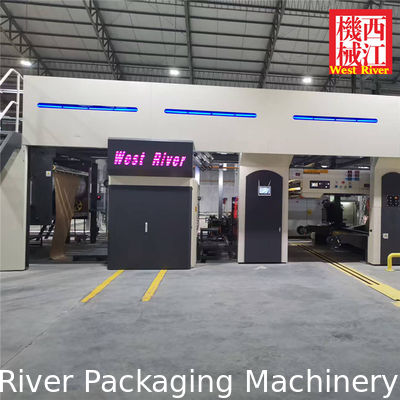

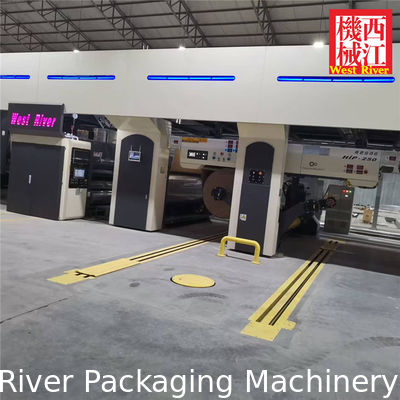

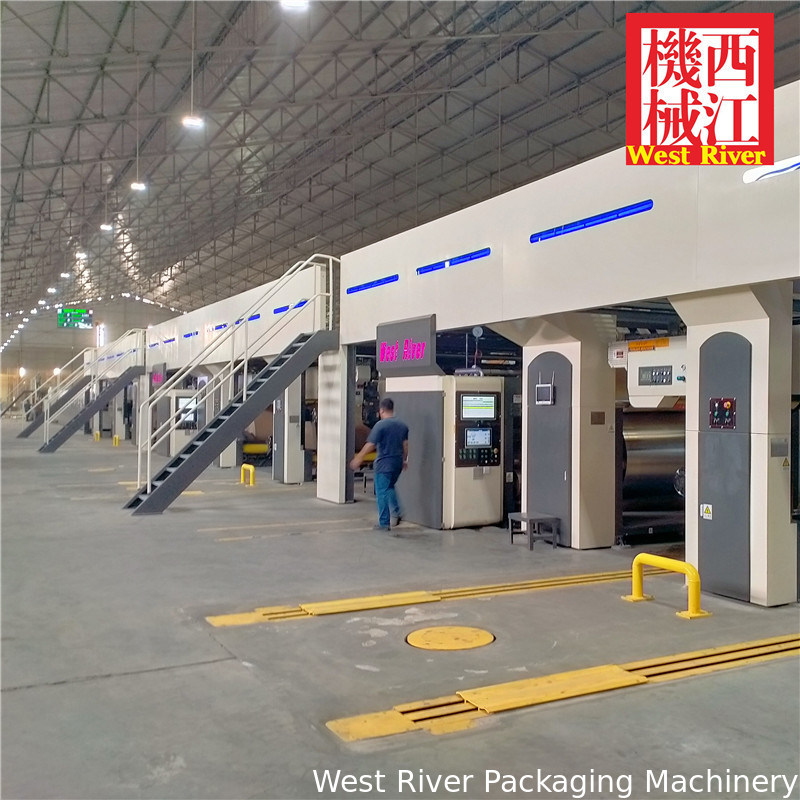

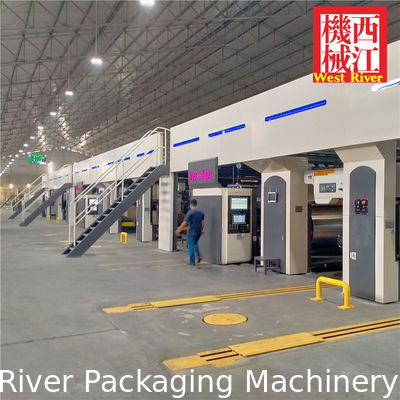

OVERHEAD CONVEYOR BRIDGE,convey the corrugated single face cardboard by Guide device, conveying device, vacuum suction device.
- The single face cardboard is driven the Guide device with independent motor.
- The vacuum suction device can be operated by worker the on the bridge and under the bridge. The air flow flux of the vacuum(fan), can be adjusted opening of outlet by Manual.
- The cardboard alignment can be realized by (motor) electro-motion adjustment.
- With fences and ladders.
- At the bottom of the bridge, equipped with relevant illumination, be convenient to operate.
- The surface of all paper guide rollers are plated with hard chromium.
- With LED lights, easy for operator to see working status.
Multi Function Design for 2+3+5Ply Corrugated machines Bridge
Automatic Tension and WEB Guider system:
The fixed positioning of the single face webs with adjustable side plates causes frequently damages of the web edges and web tear outs. Unnecessary machine stops and an increased loss of material are the consequences.
The single face web can be guided alternatively in reference to the outer liner web. Full-width sensor also record the outer liner in her position, and, if desired, guide her to the machine center by using the BGM.
Production improvements:
- Even stable and vibration free entering of the webs into the double backer
- None deformation of the flute
- Can handling with different working widths could operated without any loss of time
- Improved heat transfer at the pre-heater through constant web tension
- Reducing the web demolition
- Increased average speed
- Minimizing machine down times through better lamination at the double backer and the slitter
Scorer
- Scanning of the single face webs without contact (also for the bottom liner)
- Stress free web alignment through laid on non crash (polyurethane) rolls
- High accuracy of web alignment
- Manuel adjustments to the new paper width are not longer necessary
- Continuous production through continuous operation of the controller
- Complete, compact and wired mounting frame
- Low maintenance through scavenging air blower for the scanning systems
- Improved service through use of Modem line
WEST RIVER focus on complete corrugator manufacturing in the South of China, built in 1954, up to now, we already have 60 years more mechanical manufaturing experience. As the first company in China to manufacturing the corrugated machine, we help to set up the corrugated industry national standard in China. In 1999, we also start to cooperate with Germany famous company to manufacture the high speed corrugated line.
Combine with the our mechanical experience, China paper usage experience and absorb the european technologies, we have develop the stable performace equipment and high strength cardboard making technologies using different paper materials. Up to now, we already expor the machine to all over the world such as Finland, French, Italy, Hungary, Greek, Turkey, Saudi, Egypt, Isreal, Iran, Iraq, Palestine, Jordan, UAE, South Africa, Algeria, Senegal, Ethiopia, Uzberkistan, India, Vietnam, Malaysia, America, Mexico.... And win the good reputation around our users. Now, more than half of our users also have second or third corrugated line from us.
