2Ply Smart 2.0 Single Face Board Complete Paper Corrugator Machines

Product Details:

Place of Origin:	China
Brand Name:	West River
Certification:	ISO, CE
Model Number:	2Ply Smart 2.0 Design

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	20,000
Packaging Details:	8 containers
Delivery Time:	70days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/per year

Contact Now

Detailed Product Description

Width:	1200-2200mm	Speed:	80-200m/min
Type:	2Ply Single Face	Name:	Corrugated Machine
Raw Material:	Craft Paper Material (for Corrugating)

Product Description

1. Model: 2Ply Smart 2.0

2. Max. Speed: 80-200m/Min

3. Standard: GB

4. Certification: ISO9001, CE

2PLY Single Face COMPLETE CORRUGATED CARDBOARD PRODUCTION LINE:

*WEST RIVER Smart 2.0 Siemens profibus control system for single face board package machines control

*Intelligent tempearture control and steam saving system

*Automatic tension and balance tension control

*International advanced intelligent pressure loading system, vector pressure loading control

*High speed and low noise control

*Provide free customized whole carton plant design, auto logistics design, equipment placement and installation, ERP system connection, local employee training

*Modular design, easy for upgrate and Maintenance

It is for making 2ply single face corrugated cardboard for different kinds of package of funitures, flowers, seafood, for offset lamination...ect, it is also able to upgrade into 2Ply +3Ply or 2Ply +3Ply+5Ply in the future...

How to make vivid color package boxes? How to use the craft paper replace the hardboard package?

For the vivid flexo printing, many our China and Europe customers now use the pre-print to replace the offset printing due to the pre-printer is more environmental friendly and less process comparing to offset carton box making, also the quality, cost efficient, manufacturing efficient of cardboard is better compare to offset lamination process. Such as our Greek customer, they have choose our 2Ply+3Ply Corrugated line with pre-printing to replace their old laminator making cardboard process. They also purchase a 6 colors pre-printer from China to making the pre-printed roller for making pre-printed cardboard. But for smaller oders, they will still use the old offset printing.
And they also choose N flute cardboard making to replace the many E flute package or hardboard package as it use less paper and more cost effective. The hardboard paper cost about 2000USD/ton while the corrugated craft paper cost less 1000USD/ton.
In the market now in China, some chinese customers also start using digital printing to replace the offset printing for small orders production.

TECHNIQUE DATE:

Model	Smart 2.0 SIngle Face Corrugators
Design Speed	80-200m/min
Width	1200-2200mm (option)
Single Facer	Inner Vacuum, Outer Vacuum or Postive Press
Flute type	A, B, C, E, F, G, N flutes (height customized)
*Size(LWH)*	20m7m4.5m
Steam consumption	1000kg/h(1.1-1.2Mpa)
Power supply	~70KW ,~380Vac, 50HZ, 3 phases 4 wires
Pre-heater	Cylinder(Rotary/Fix) or Arc plate(new)
Control System	Siemens Control System
Stacker	Down Stacker or Swing Stacker(option)
Auto Pallet Feeding	Option
Slitting	Option
Auto counting	With
Auto output	With
Auto-Splicer	Option
Mill Roll Stand	Option
Auto Feeding Paper	Option
Surface Color	Option
In-line Design With Laminator	Option
Deliver day	90 days
Installation	By supplier
Warranty	1 year

West River brings different technologies for your options, our mature and more than 40 years of long history technologies accumulation ensures our quality and wide different technology choice for our customers.

Video Show:

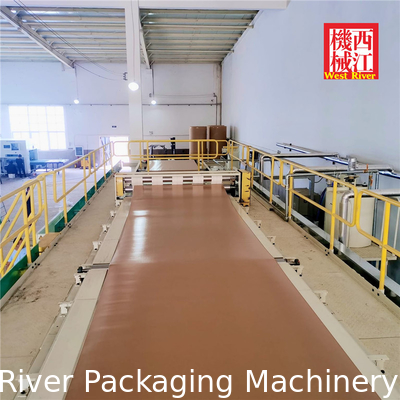

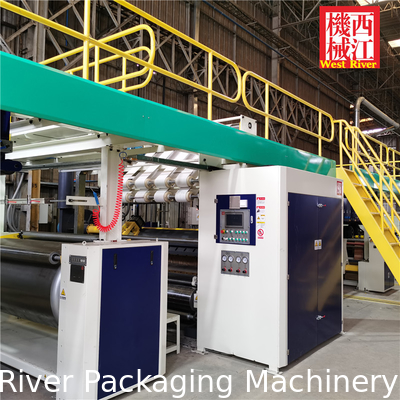

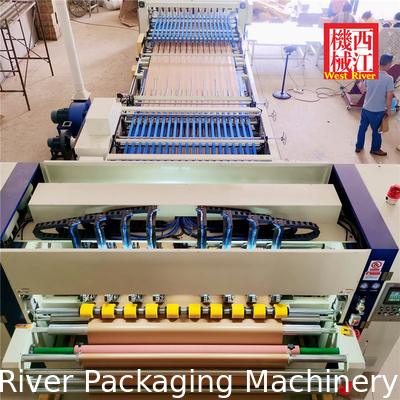

Product Show

2Ply Smart 2.0 Single Face Board Complete Paper Corrugator Machines 0

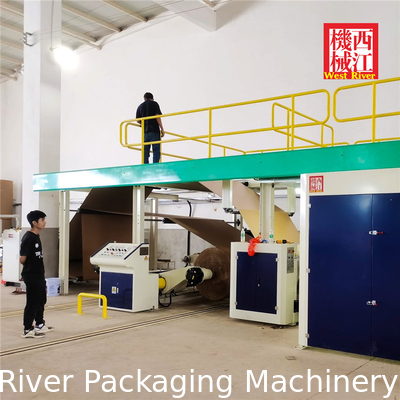

Layout Design

Our profession engineers are able to design the complete factory layout according to your requirements.

2Ply Smart 2.0 Single Face Board Complete Paper Corrugator Machines 4

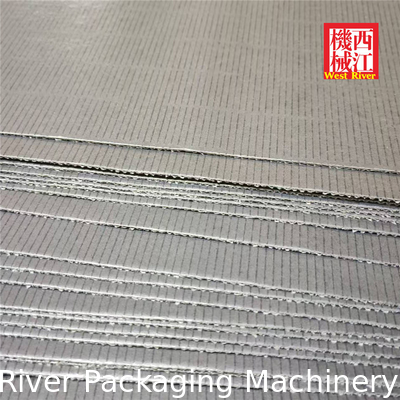

Finish products

Our equipment help you to produce high-quality cardboard and carton.

2Ply Smart 2.0 Single Face Board Complete Paper Corrugator Machines 5

What do you know about our machines?

In the past couple of decades we have always insisted on high quality, our products are exported to more than 90 countries.

2Ply Smart 2.0 Single Face Board Complete Paper Corrugator Machines 6

WestRiver Packaging Machinery was founded in 1954. The first semi-automatic single facer of China was born at our factory in 1978. It was the prelude of corrugated packaging industry.

Our engineers are available to service overseas

We attend to the trade fairs all over the world

2Ply Smart 2.0 Single Face Board Complete Paper Corrugator Machines 7

You are always welcome to visit our factory

2Ply Smart 2.0 Single Face Board Complete Paper Corrugator Machines 8

We adhere to the "quality first, reputation first" business purposes, and continuously forgeahead.

FAQs

1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer.

2Q: Where are your factory located in ?
A: Our factory located in Zhaoqing city, Guangdong, China

3Q: Where is the nearest airport of factory ?
A: The nearest airport is Guangzhou Baiyun International airport. It take 1.5 hours from Guangzhou to Zhaoqing factory by car. We are glad to pick you up at the airport.

4Q: What is your business process?
A: Talk about requirements, confirm details, sign a sales contract, pay for deposit, arrange production, test machines, buyer pay for the balance payment, arrange shipment.

5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution
We have professional technicists to supervising to production
Our professional department to examine about every production process

6Q:What can you do if the machine broken?
A: The warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we can negotiate to the problems, and we supply the technical support for the whole life of the equipment.
