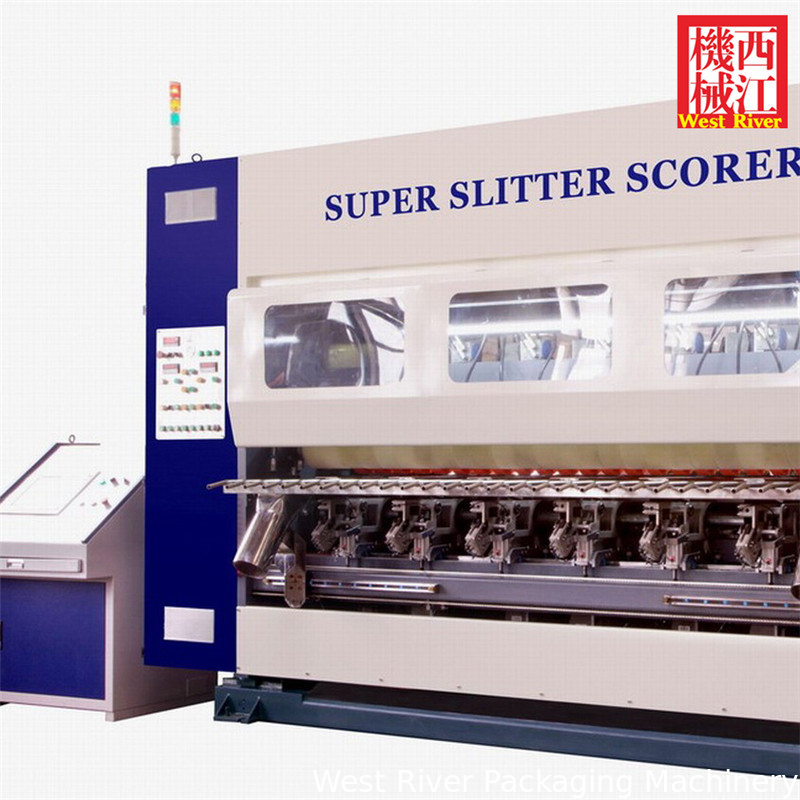

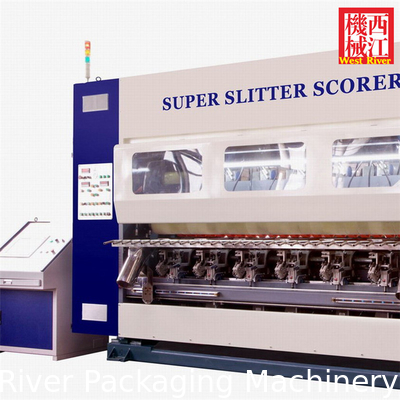

Computer Controlled Thin Blade AC Servo Slitter-Scorer for Corrugated Package | Zero Scoring Distance Option
Features:
(1) NC control system of slitter scorer for cardbaord cutting and scoring, slitting knife and line pressing wheel are controlled by independent servo motors. High speed order arrangement and precise positioning within 1-3s.
(2) Applied to high-speed production line, can achieve seamless and constant production.
(3) Remote monitoring: remote monitoring through Ethernet or 4G wireless card to achieve fast maintenance and improve efficiency.
(4) Unique design of cutting to ensure the edge of the cardboard precise, and the smooth face without glitch, can meet the high efficiency of production and reduce stop rate of printing.
(5) Can suit cardboard creasing of any weight, multi-type of scorer are available: convex pressed to concave, convex pressed to convex, convex pressed to plane,time of line type change less than one second.
(6) Fully-automatic absorb waste system; location of absorb waste can automatically adjust to follow the knife according to the order change.
(7) Minimum Press Line Distance: 120mm , Press Line Gap Adjustment: 1-10mm(zero scoring type without pre-scoring)
(8) Working Width: 1200-3300mm
(9) Max. Speed: 150-400m/min
(10) Minimum Longitudinal Distance: 155mm
(11) Slitting Knife Configuration: 4-9pcs
(12) Pressure Line Wheel Configuration: 6-18pcs
(13) Order Arrangement Precision: ±1.0mm
West River Chinese Best Quality Corrugated Equipment Supplier!
West River has been committed to the research and development of environmental protection cardboard packaging material production technology, and the concept of environmental protection and energy saving throughout the concept of product research and development, for the world environmental protection packaging has made its due contribution.
-Automatic temperature control technology to improve thermal efficiency,
-Automatic control technology to reduce roll paper waste, and reduce product waste rate and labor intensity,
-Special technology of West River to realize high strength cardboard production,
-Intelligent data management technology to realize intelligent manufacturing and the improvement production efficiency of workshop.
-Waterproof technology, the packaging for fruits, vegetables and seafood can be realized.
The production of high-efficiency, energy-saving, high-strength and high-quality cardboard products as well as green manufacturing. Reduce dust pollution, water pollution, noise pollution, land occupation area and achieve low energy consumption so as to achieve the ultimate goal of environmental protection.
