NC Slitter Scorer Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter

NC Slitter Scorer Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter

  • NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter
  • NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter
  • NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter
  • NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter
  • NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter
  • NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter
NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter
Product Details:
Place of Origin: Guangdong
Brand Name: West River
Certification: ISO9001:2000, SGS CE
Model Number: P series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 30,000
Packaging Details: Container
Delivery Time: 120 days
Payment Terms: TT, L/C
Supply Ability: 25 sets
Minimum Order Quantity: 1 set
Contact Now
Detailed Product Description
Method: Automatic Press Type: M-M; M-F; M-Flat
Control: Servo Function: Cardboard Slitting
Motor: Servo Motor Feature: Accorate
Name: Corrugated Machine Raw Material: Craft Paper Material (for Corrugating)
Highlight:

Corrugated Singlefacer machinery

,

Corrugated Cardboard machinery

,

Carton Machinery

WEST RIVER NC Slitter Scorer Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter

NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter 0

Fast order change, Non Stop production, precise slitting size, Down slitting option



Features:

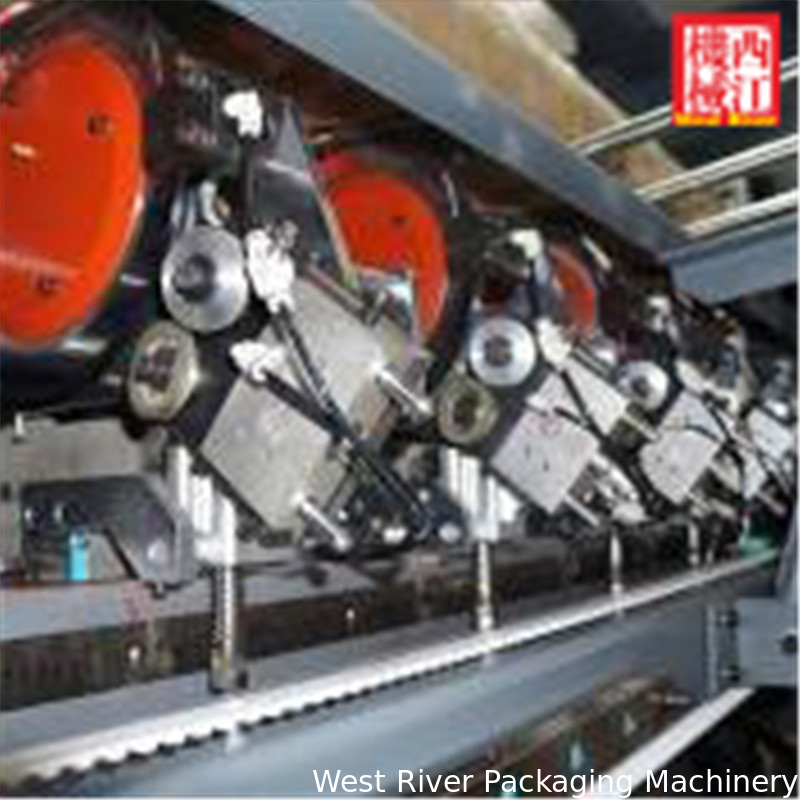

(1) The perfect combination of EtherCAT servo motors and drivers (controllers) that meet CE standards is adopted, with excellent equipment quality, simple system structure, stable and reliable system, minimal maintenance, and significantly reduced downtime caused by maintenance.

(2) The servo motor comes with an absolute value encoder, which calculates the position very accurately. It also has a displacement memory function, which eliminates accumulated errors and ensures long-term stability of accuracy. Order placement accuracy ± 1.0mm. The servo motor responds sensitively, arranges orders quickly, and reduces order placement time by 1-3 seconds.

(3) Taiwan's silent high-precision rack and pinion guide rail, ensuring high precision and service life for single placement.

(4) Hard alloy steel paper cutting blade, diamond grinding wheel.

(5) High strength and high-precision casting guide rail installation beam.

(6) This system is based on EtherCAT bus: a mature industrial grade control bus widely used for interconnection between precision equipment; Fast communication speed and strong anti-interference ability; Based on the international standard motion control protocol V2.0. Advanced motion control protocol enables the combination of various optimization algorithms, precise positioning, and fast scheduling.

NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter 1

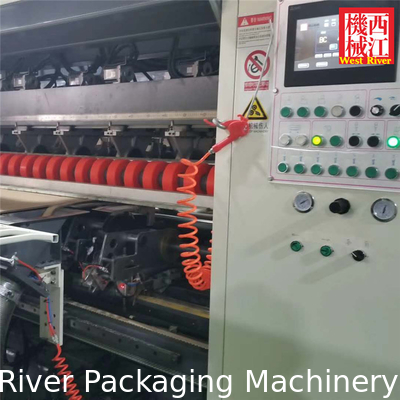

(7) The computer has dynamic display of order size, tool holder, and pressure line displacement, which can monitor the production status at any time; Edge trimming and line pressing data are accurately calculated by the computer for the positions of each blade and line wheel, eliminating human calculation errors. The servo motor dynamically adjusts the edge trimming and line pressing device for greater precision; Orders can be pre entered and stored, and various functions such as inserting, modifying, and supplementing orders can be implemented; The depth and line type of the pressure roller are automatically controlled by the computer.

(8) Adopting internationally recognized fully open communication protocols, it can be connected to any production management system or ERP;

(9) Remote monitoring: Supports remote monitoring through Ethernet or 4G/5G wireless network cards to reduce after-sales service volume.

(10) The independent paper feeding mechanism adopts Inovance variable frequency control, which is more conducive to the indentation and cutting accuracy of the cardboard.

(11) Carbon fiber knife comb ensures long-term sharpness of the knife, reduces sharpening time, and extends the service life of the knife.

(12) Multiple line types for users to choose from.

(13) The fully automatic servo waste suction system automatically adjusts the position of the left and right waste suction ports according to the edge knife when changing orders.

(14) Independent sharpening lubrication and cooling system, extending the service life of the slitting knife.

(15) Working speed: 150-400m/min.

(16) Minimum longitudinal cutting distance: 160mm.

(17) Minimum pressure line distance: 0 mm.

(18) Adjustment of wire gap: 1-10mm.

(19) Scheduling time: 1-3 seconds.

NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter 2



We provide equipment with national standard production speed and high-quality corrugated cardboard quality control. By adopting the advanced Smart 5.0 BECKHOFF integrated control system from Germany, the raw paper tension, temperature control, glue quantity control, wet end and dry end equipment synchronous communication control, and internal production management system of the corrugated cardboard production line have been achieved under the matching of production speed. These automated controls greatly reduce the stable production efficiency and quality control influenced by the experience of operators.

We have a good customer reputation in the world markets, and providing customers with high-quality equipment and excellent 24-hour online after-sales service is the lifelong pursuit of the WEST RIVER team. Even after the warranty period of the contract, we still provide lifelong technical support online! We currently have our customers using high-quality equipment from WEST RIVER in over 60 countries.
NC Slitter Scorer  Fully Automatic Intelligent Servo Control Cardboard Slitting 1-sec change order Sheeter 3

We also hope to achieve the establishment of a cost-effective model packaging project through our comprehensive cooperation!


Solutions: NC Slitting Scorer for Corrugated Cardboard Making



Valid width: 1200mm-3300mm



Design speed: 100M/min-400M/min



Corrugation Type: 2Ply, 3Py, 5Ply, 7Ply



Flute type: A, C, B, E, F, G, N Flute



Printing: Water Base Flexo Printing



Cotrol System: Smart 5.0 Beckhoff Integrated Control System with Big Datas
