Robotic Type NC Slitter Scorer B&R and ABB Control System 1s Change Order Down Face Slitting

Product Details:

Place of Origin:	Guangdong
Brand Name:	West River
Certification:	SGS CE Verification ISO
Model Number:	P

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	30,000
Packaging Details:	Container
Delivery Time:	120 days
Payment Terms:	TT
Supply Ability:	25 sets
Minimum Order Quantity:	1 set

Contact Now

Detailed Product Description

Name:	Corrugated Machine	Slitter:	Up To 9
Scorer:	Up To 16	Control System:	Siemens
Change Time:	1 Seconds	Scoring Distance:	120 Or 0mm
Raw Material:	Craft Paper Material (for Corrugating)

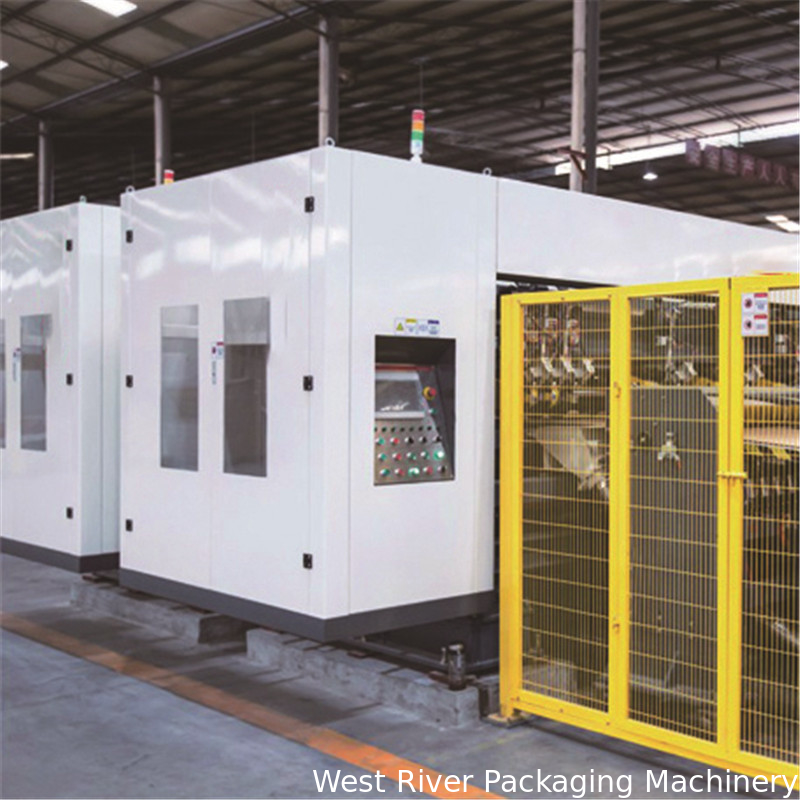

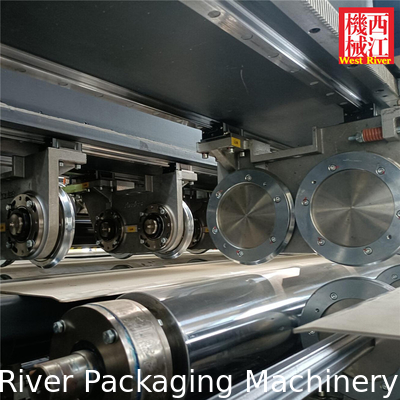

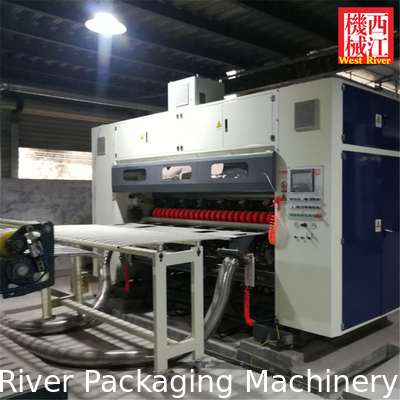

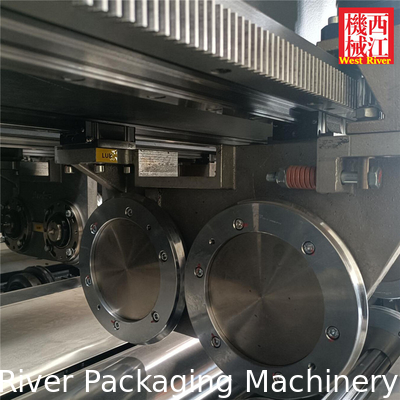

Robotic Type NC Slitter Scorer

Robotic Type NC Slitter Scorer B&R and ABB Control System 1s Change Order Down Face Slitting 0

B&R + ABB Control System

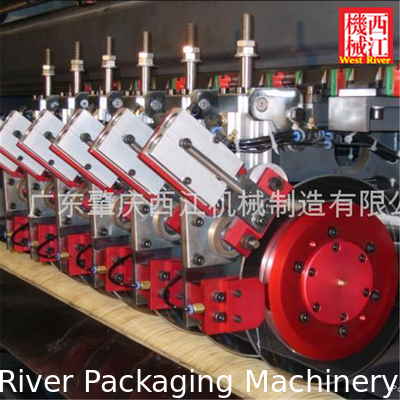

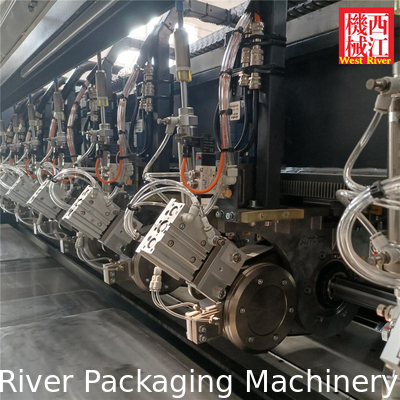

Indivial Servo Motor Drive for Each Blade and Scorer

1s Change Order

Industrial 4G connection
Max.Speed 380m/min

Down Slitting For Face Side Option

Auto Adjusting Scorer

WEST RIVER Smart 5.0 Beckhoff System for Packaging Machinery

Robotic Type NC Slitter Scorer B&R and ABB Control System 1s Change Order Down Face Slitting 3

1. This new super-intelligent automatic cruise control system uses two super controllers and computers to realize real-time control of all equipment in the wet end and dry end of full corrugated line, and accurately realize closed-loop network communication of each equipment. Each equipment no longer has a separate PLC+Analog communication signal control, just like ONE human brain accurately controls every part of the body!

2. The real-time order production of each machine needs to implement two-way communication, accurately and synchronously control the glue amount, gap and temperature of each equipment according to the type of cardboard to be produced and the paper material used, accurately and digitally control each equipment, reduce the communication delay between different PLCs, and feed back the working conditions of the equipment to the central brain in real time. Accurately perceive each equipment from Single Facer, Preheater, Gluing machine, Double Facer, Slitter Scorer, Cut off Machine, Stacker and Fast order change, running meters, and synchronization of each machines, and real-time calculation in a supercomputer to achieve efficient order change, precise production meter control, reduce human operation errors, reduce interference of different equipment communication, reduce scrap rate, and improve cardboard production quality!

3. A more intelligent control system: this super intelligent computer is synchronized with all parameters of the inverter&motor&servo system of the production line. There is no longer a need to check the equipment one by one. Just in one computer, the real-time operation of all equipment can be detected, and fault detection can be performed, such as current and voltage abnormalities!

4. Two super controllers are real-time redundant spare parts. One controller is working and the other is real-time backup. Even if one controller has problems, the other controller can quickly take over the control of the production line! The communication adopts the extended structure of German Beckhoff EtherCAT bus ring control, and two-way backup guarantee!

5. One-station PC remote maintenance, only one control computer needs to be connected, which can remotely diagnose running situation each device! International general communication interface, SQL database for ERP system connection!

6. It is seamlessly connected with WEST RIVER new intelligent production management system, and can be connected to WEST RIVER's big data control system to provide suggestions for setting glue amount, tension, gap and temperature for different cardboard in the production process!

7. In the future, continuous upgrade of the operating system can be realized, just as Windows 7 can be upgraded to Windows 10 easily!
