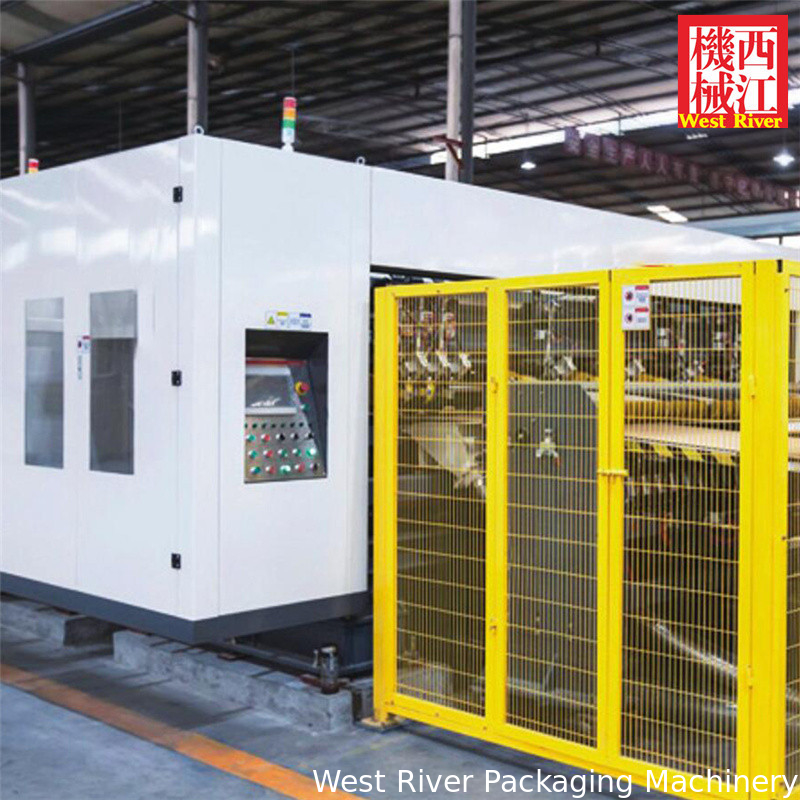

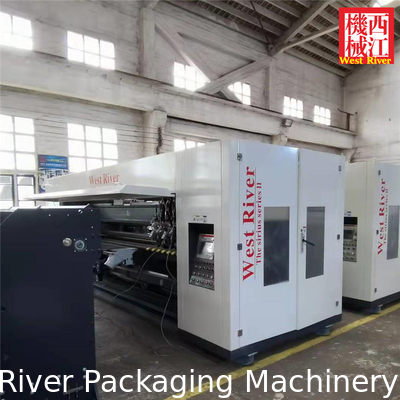

Fully Automatic Computer NC Slitter scorer for Corrugated Cardboard Production Line

· Unique design with fastest Robotic arm setup time 3-10 seconds for Quick machine.

· Instant machine with individual motors for each head for 1 second setup time.

· Max Speed: 350mpm, Non Stop Order Change Speed: 260 mpm

· Variety of scoring profile. Standard machine comprises of point to point, male to female, offset scoring and point to flat.

· Min score: 0mm

· Min slit width: 135mm

· Min trim: ≤ 5mm

· Accuracy: ±0.5 –1mm

· Standard top slits 4 outs for 1800mm width, 6 outs for 2500mm width and 7 outs for 2800mm width machine, 8 outs for 3000mm, 9 out for 3300mm

· Tungsten carbide thin slit blades for clean cut of boards

· Individual grinder and wick lubricator for each slit head

· Optional for trim saver alignment

Fast Change in 1s

Fully servo Control

Non Stop Production

Change Speed 260mpm

DOWN SLITTING TOP SLITTING AS OPTION

Functions:

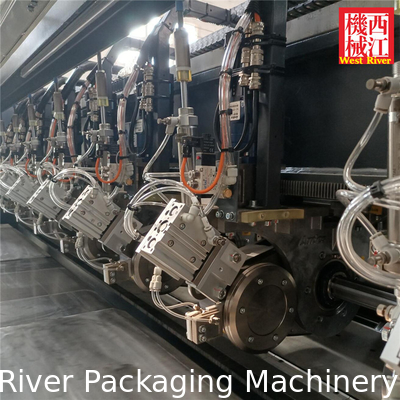

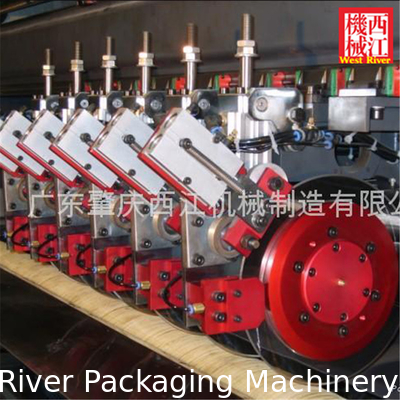

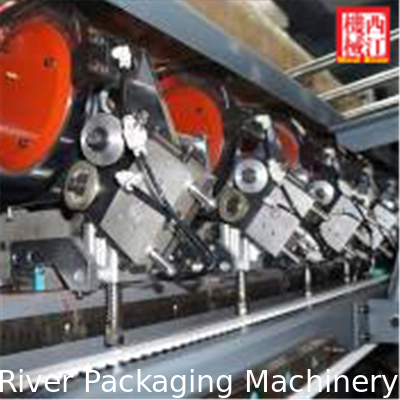

1, Slitting
The slitting machine, equipped with a cutting thin blade device, is capable of longitudinally cutting cardboard according to preset parameters in the control computers. During this process, the thin blades drive device (consisting of a cutter holder, movable frame, slider, motor, cutter head, etc.) will move precisely to ensure the accuracy of cutting. At the same time, the slitting machine also has automatic order changing and sorting functions, which can automatically arrange the slitting blades according to the order specifications and lift the corresponding slitting blades to achieve fast and accurate cutting.

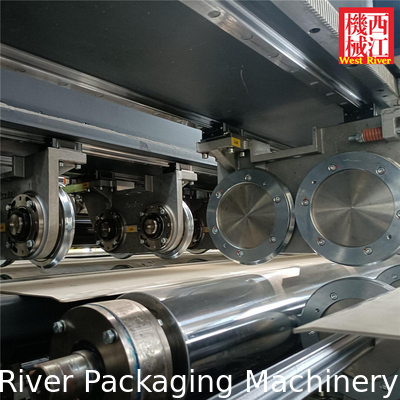

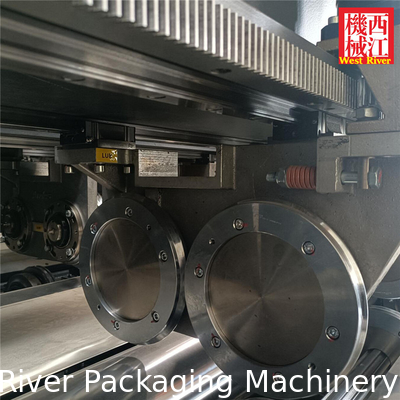

2, Scoring treatment
In addition to cutting, the slitting machine also has scoring function for cardboard. The indentation is achieved by rolling the upper and lower male and female wheels, which can form the required pressure groove on the cardboard. These pressure grooves play a guiding role when folding cardboard, making the folding more neat and beautiful. Meanwhile, the depth of the scroing line can also be precisely controlled by adjusting the position of the pressure roller.

3, Improve production efficiency and product quality
The use of computer control automatic slitting machines can significantly improve the production efficiency and product quality of corrugated cardboard production lines. On the one hand, the computer slitting machine can achieve automated slitting and scoring processing, reducing the manual operation steps and thus improving production efficiency. On the other hand, the computer slitting machine has high-precision cutting and indentation functions, which can ensure the dimensional accuracy and appearance quality of the cardboard. with the Pre-Print Color Marking System for option as well for colorful pre-print cardboard prodution.

4, Adapt to diverse needs
The longitudinal cutting machine in the corrugated cardboard production line also has the ability to adapt to diverse needs. By adjusting the number, position, and parameter settings of the cutting blade and indentation wheel, the computer slitting machine can produce cardboard products of different sizes and specifications. This enables the corrugated cardboard production line to flexibly respond to changes in market demand and meet the diverse needs of customers. It is also able to realize NON-STOP prouduction with two sets of slitter machine working together!

Not matter for the new corrugated line or the Upgradation of the old corrugated line, WEST RIVER is able to design the slitter suitable for you!
